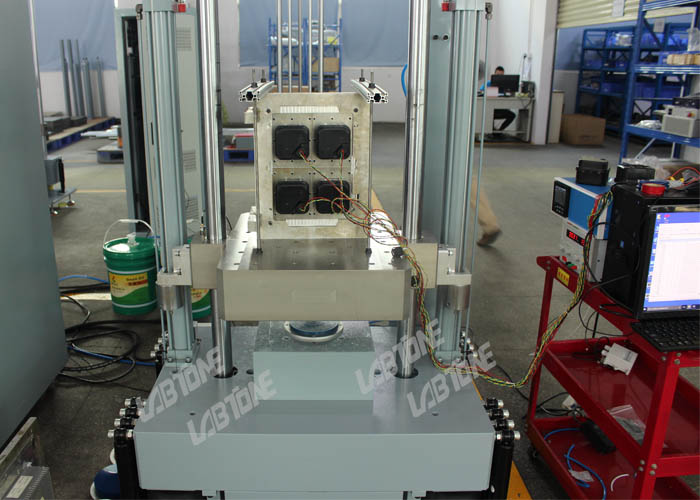

MIL-STD-810F Standard Payload Impact Shock Test System For Home Appliance Parts

  • 1
  • 2

Brand Name : LABTONE

Model Number : SKT100

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 45 working days

Packaging Details : International wooden case

Product Name : Shock Test Equipment

Max. specimen weight : 100kg

Max. acceleration : Half sine: 600G

Machine dimension : 130x120x260 cm

Machine weight : 3200 kg

Power supply : 3 phase AC 380V 50Hz

Table Size : 70x80 cm

Compressed Air : 0.5-0.8MPa

Contact Now

MIL-STD-810F Standard Payload Shock Test Equipment For Home Appliance Parts Shock Test


Applicable Standards: GB/T2423-2008;GJB1217;GJB360.23;GJB150;GJB548;MIL-STD-202F;IEC-68-2-27;MIL-STD-883E;MIL-STD-810F;ISTA;UL.

Specification

ModelSKT30SKT50SKT100SKT200SKT300SKT600SKT1000
Table Size (cm)40 x 4050 x 6070 x 80100 x 100120 x 120150 x 150200 x 200
Max. Specimen Weight(kg)30501002003006001000
Max.
Acceleration (G)
Half Sine600600600500500300300
Saw-tooth100100100100100100100
Square　150150150100100100
Pulse duration
(ms)
Half Sine30—0.530～130～130～220～320～320～3
Saw-tooth18～618～618～618～618～616～618～6
Square　30～630～630～630～630～630～6
Controller cabinet dimension(cm)W55*D50*H80
Machine weight(Kg)190023003200420085001550021500
Power supply3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa
StandardsGB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL

Applicable Industries: Suitable shock test for aviation,aerospace,marine,military,consumer electronics,automobiles,home appliances and display devices.


Features:

  • convenient touch screen operation;

  • complete safety protection systems;

  • utilize pneumohydraulic booster and braking systems to prevent multiple impact;

  • with air spring shock absorber and hydraulic shock damping mechanism,there will be no influence of impact on the surrounding and no foundation requirement.


The Application of Shock Test:

Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging.Regardless whether you want to do a boundary assessment on complete product breakage, industrial standard shock pulse or company's internal standards, we can provide the most advanced shock test systems to meet your application requirements.

Suitable shock test for aviation,aerospace,marine,military,consumer electronics,automobiles,home appliances and display devices.

By selecting different waveform generator, can perform:half sinusoidal wave, sawtooth wave, trapezoidal wave.



Please feel free to contact us come with your requirement. We will customize solution for you!

Product Details:

MIL-STD-810F Standard Payload Impact Shock Test System For Home Appliance Parts

Presales:

  • Technical consultation: test method, laboratory planning, and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.


In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).


After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis, and troubleshooting.
  • Scheduled on-site service: Detection of the problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of the latest technical information.
  • Technical support: special paid services are provided according to the customer’s needs.
